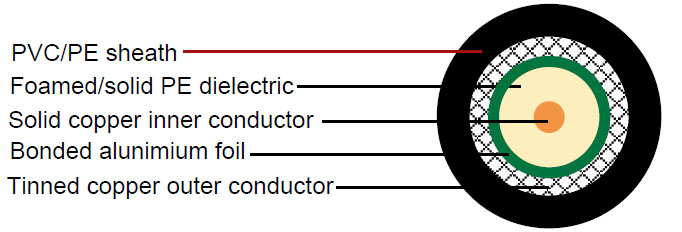

Construction :

• Inner conductor	Bare copper/Copper clad steel	Φ1.8 mm
  Dielectric	Foam /Solid PE	Φ5.0±0.02 mm
  Shield	Bonded aluminium foil	Φ5.2 mm
  Outer conductor	Tinned copper braid	Φ5.7 mm
  Shield coverage		85%
  Sheath	PVC/PE	Φ7.5 mm

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	82 pF/m
  Velocity of propagation	82%
  Insulation resistance	>5000 Mohm.Km
  Inner conductor resistance	6.8(10.5) Ohm/Km
  Outer conductor resistance	14.1 Ohm/Km
  Operating temperature range	-40°C - +85 °C
  Min.bending radius	38 mm

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100 ft)
  100	6.3	1.9
  150	7.8	2.4
  280	10.8	3.3
  350	12.1	3.7
  400	13.0	4.0
  800	18.9	5.8
  900	20.2	6.2
  1200	23.7	7.2
  1500	26.8	8.2
  1800	29.7	9.1
  1900	30.6	9.3
  2000	31.5	9.6
  2200	33.3	10.1
  2500	35.8	10.9
